Linear Power Supply for Geek Pulse
« on: July 13, 2014, 18:22 »

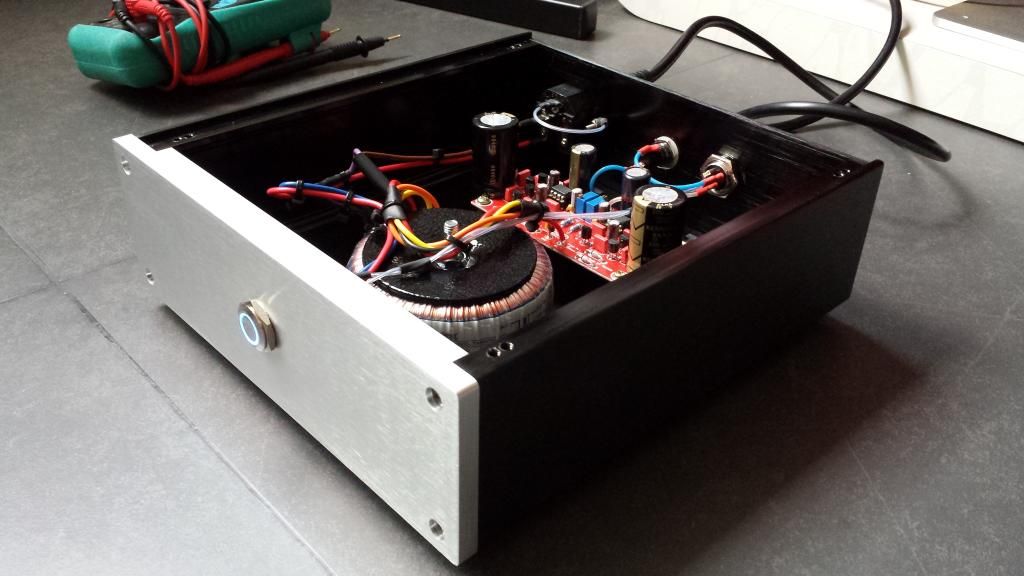

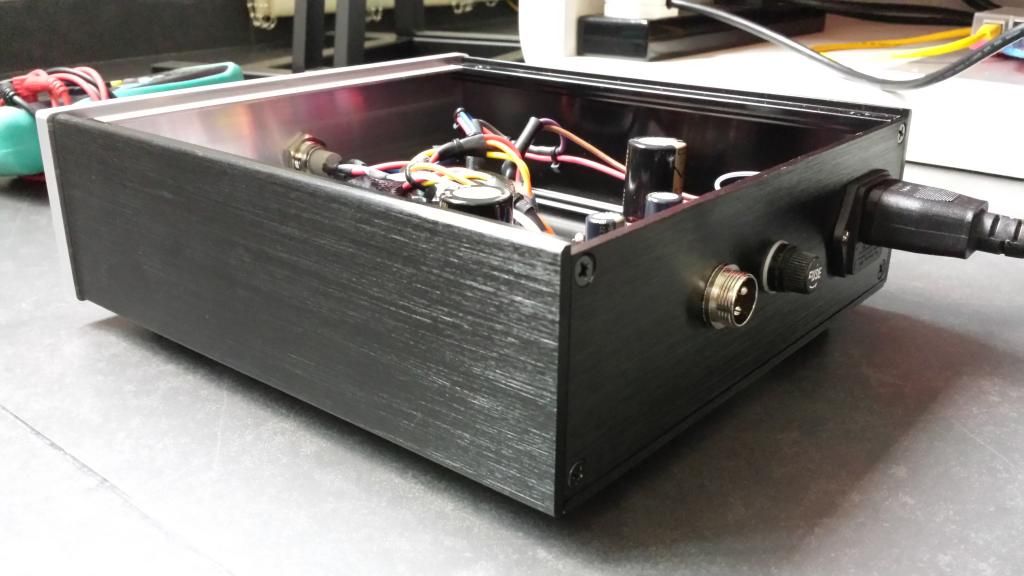

Finally get it done. Squeezing time between hobby and new born baby girl, not easy! !

Chassis - Wei Liang Hifi China, Taobao
AC Transformer - Noratel 15-0-15 60VA
Closed Loop LPS - Taiwanese Hohodiy Dual Voltage PSU(was previously used for my power amp, only utilising the +ve & gnd. -ve is not connected.)

Picture paints a thousand words!

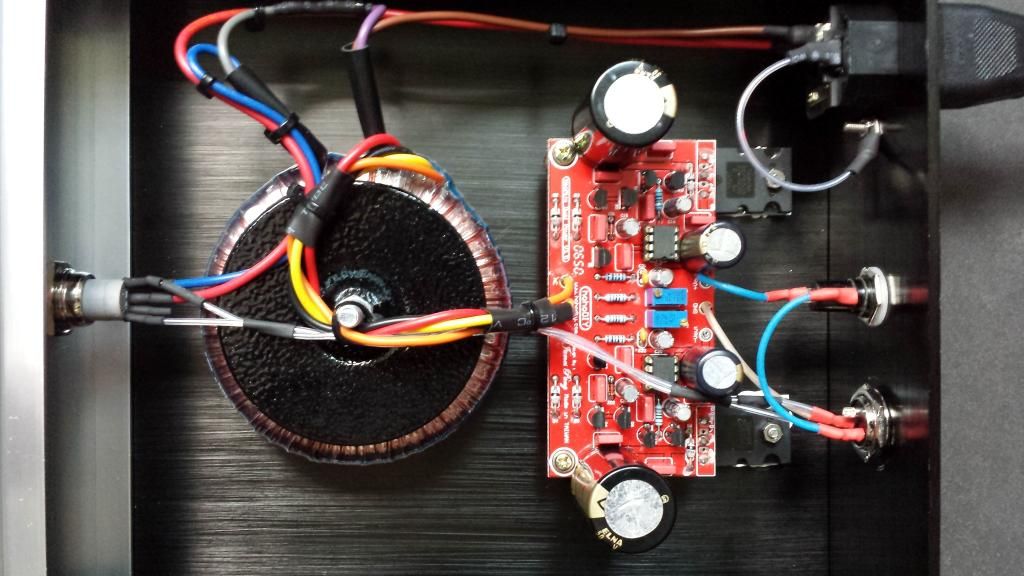

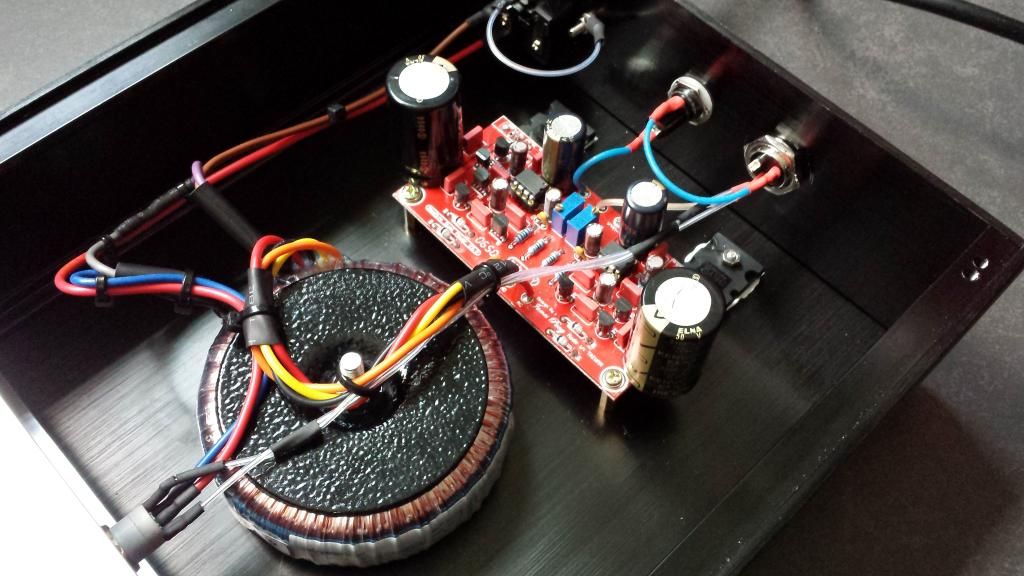

The LPS board was designed for dual voltage i.e. +ve gnd -ve; but I'm only utilising the +ve & gnd, -ve is not connected.

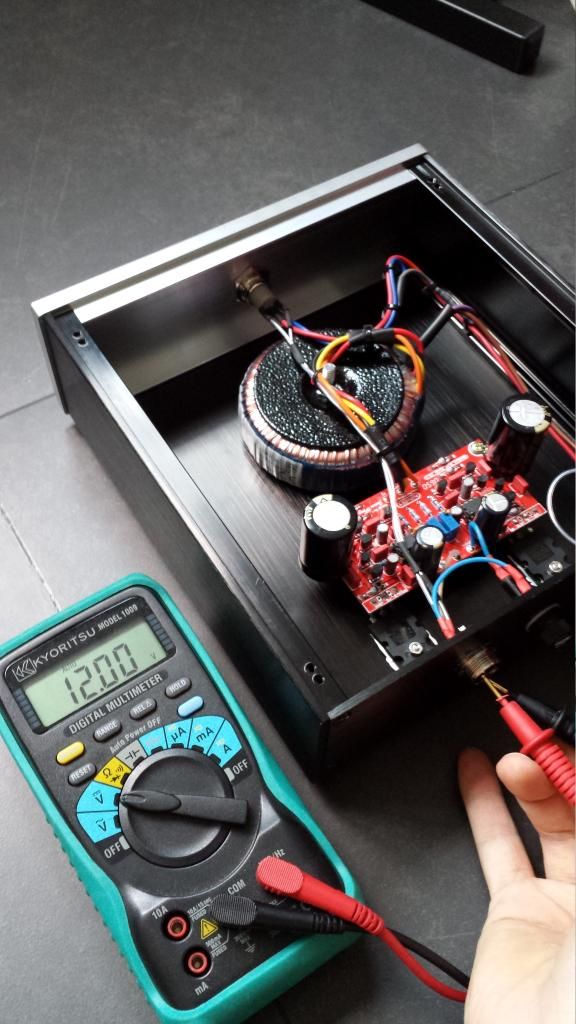

Output +12VDC without load is dead stable. Now where's my PULSE?
